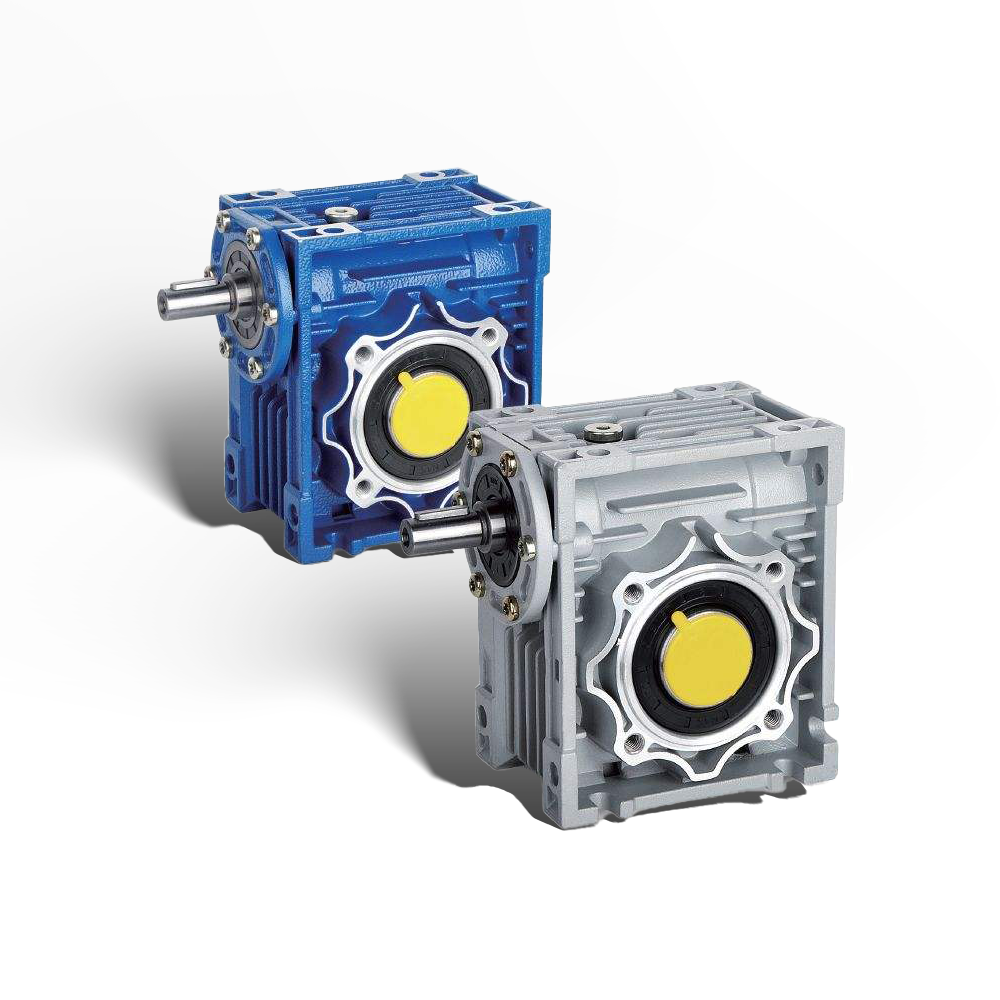

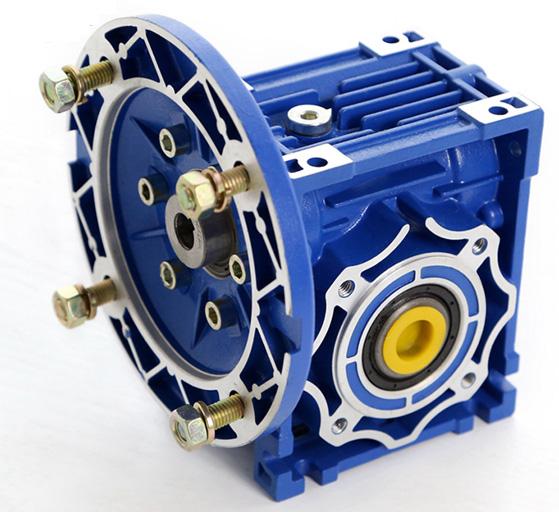

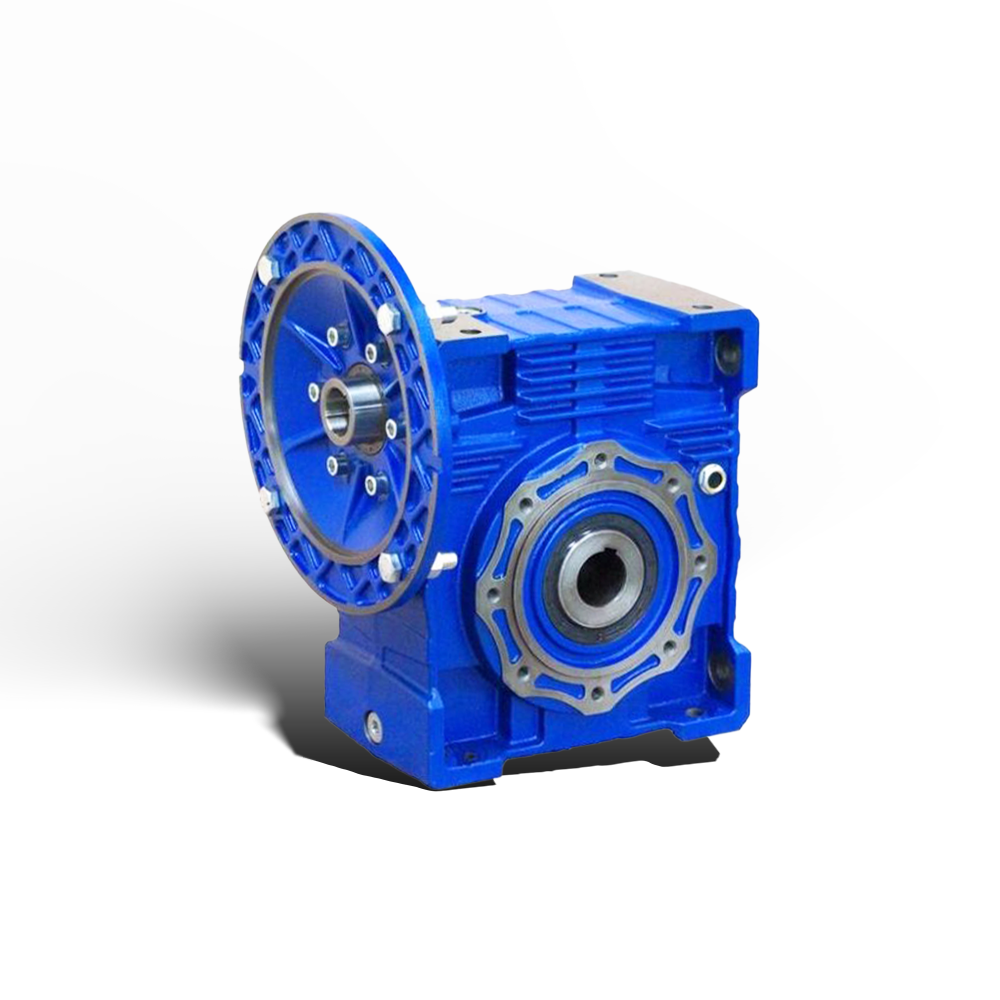

China good quality NMRV series worm reducer

  • China good quality NMRV series worm reducer
  • China good quality NMRV series worm reducer
Model No.︰NMRV025-150
Brand Name︰REDSUN
Country of Origin︰China
Unit Price︰US $ 20 / pc
Minimum Order︰10 pc
Share on:

 Total 10 Related Items
Prev45678Next

Product Description

Features

High modular design, biomimetic surface with owned intellectual property right.
Adopt German worm hob to process the worm wheel.
With the special gear geometry, it gets high torque, efficiency and long life circle.
It can achieve the direct combination for two sets of gearbox.
Mounting mode: foot mounted, flange mounted, torque arm mounted.
Output shaft: solid shaft, hollow shaft.

Components:
1. Housing: Die-cast Aluminium Alloy Gearbox (RV025~RV090)Cast Iron Gearbox (RV110~RV150)
2. Worm Wheel: Wearable Tin Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding
4. Input Configurations:

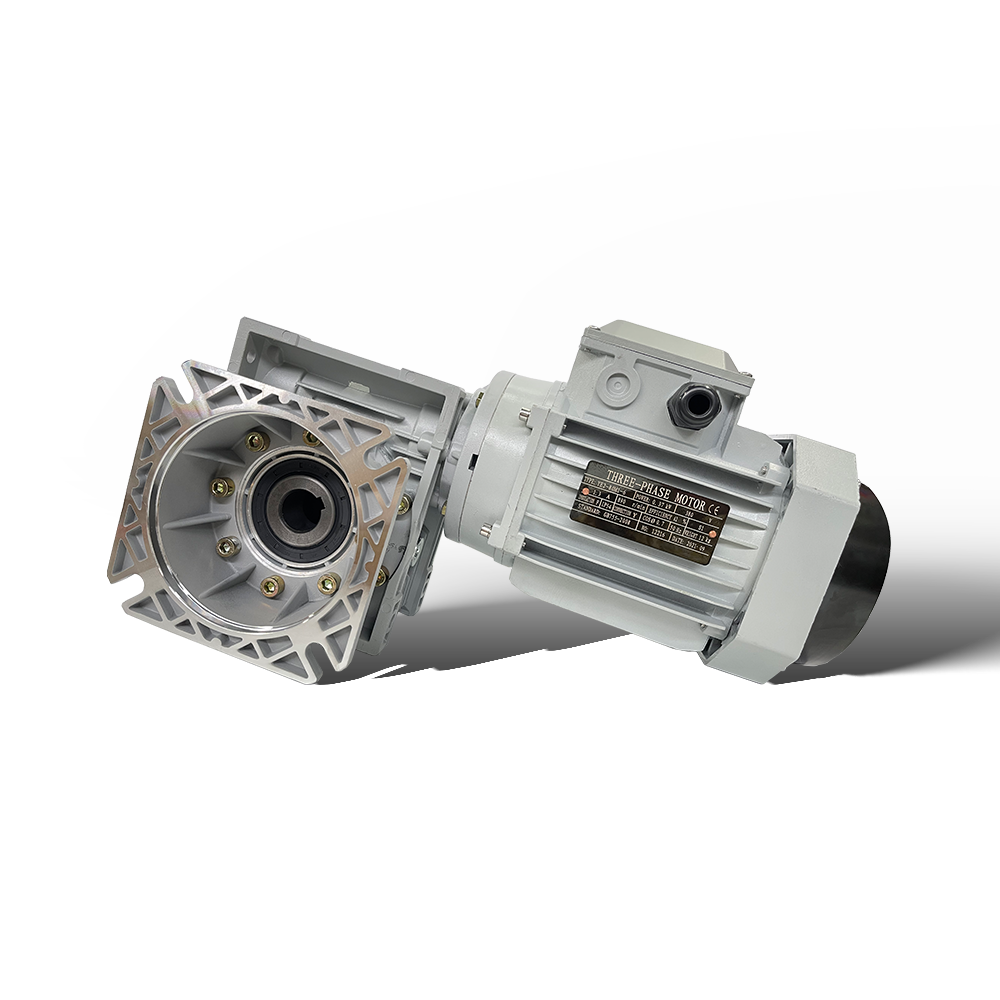

Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)
IEC-normalized Motor Flange
Solid Shaft Input
Worm Shaft Tail Extension Input

5. Output Configurations:
Keyed Hollow Shaft Output
Hollow Shaft with Output Flange
Plug-in Solid Shaft Output

6. Spare Parts: Worm Shaft Tail Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover

7. Gearbox Painting:
Aluminium Alloy Gearbox:
After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey
Cast Iron Gearbox:
After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue

Models:

Hollow Shaft Input with IEC-normalized Motor Flange
RV025~RV150
Solid Shaft Input
RV025~RV150

Features:
1. Quality aluminum alloy gear box, light weight and not rust
2. 2 optional worm wheel materials: Tin bronze or aluminum bronze alloy
3. Standard parts and very flexible for shaft configurations and motor flange interface
4. Several optional mounting options
5. Low noise, High efficiency in heat dissipation

Technical Data:


Models Rated Power Rated Ratio Input Hole Dia. Input Shaft Dia. Output Hole Dia. Output Shaft Dia. Center Distance
RV025 0.06KW~0.12KW 5~60 Φ9 Φ9 Φ11 Φ11 25mm
RV030 0.06KW~0.25KW 5~80 Φ9(Φ11) Φ9 Φ14 Φ14 30mm
RV040 0.09KW~0.55KW 5~100 Φ9(Φ11,Φ14) Φ11 Φ18(Φ19) Φ18 40mm
RV050 0.12KW~1.5KW 5~100 Φ11(Φ14,Φ19) Φ14 Φ25(Φ24) Φ25 50mm
RV063 0.18KW~2.2KW 7.5~100 Φ14(Φ19,Φ24) Φ19 Φ25(Φ28) Φ25 63mm
RV075 0.25KW~4.0KW 7.5~100 Φ14(Φ19,Φ24,Φ28) Φ24 Φ28(Φ35) Φ28 75mm
RV090 0.37KW~4.0KW 7.5~100 Φ19(Φ24,Φ28) Φ24 Φ35(Φ38) Φ35 90mm
RV110 0.55KW~7.5KW 7.5~100 Φ19(Φ24,Φ28,Φ38) Φ28 Φ42 Φ42 110mm
RV130 0.75KW~7.5KW 7.5~100 Φ24(Φ28,Φ38) Φ30 Φ45 Φ45 130mm
RV150 2.2KW~15KW 7.5~100 Φ28(Φ38,Φ42) Φ35 Φ50 Φ50 150mm


Ratio: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
Installation:
Flange Mounted
Foot Mounted
Torque Arm Mounted

Lubrication:
Grease Lubrication
Oil-bath and Splash Lubrication

Cooling:
Natural Cooling

Product Show:
Hot Sale High Quality Nmrv Series Worm Speed Reducer

Our company:

Hot Sale High Quality Nmrv Series Worm Speed Reducer
Hot Sale High Quality Nmrv Series Worm Speed Reducer

Our Workshop:

Hot Sale High Quality Nmrv Series Worm Speed Reducer
Hot Sale High Quality Nmrv Series Worm Speed Reducer

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us.



For more details, contact me below:

Tony Ye: info(at)cn-redsun.com

Price Terms︰FOB,CNF,CIF,etc
Payment Terms︰TT/LC/Credit card
Packing︰Standard Export Wooden Case Package
Lead Time︰30 Days
SKU︰PCS
Standards Certificate︰ISO9001:2015
